Major CNG

CNG Systems

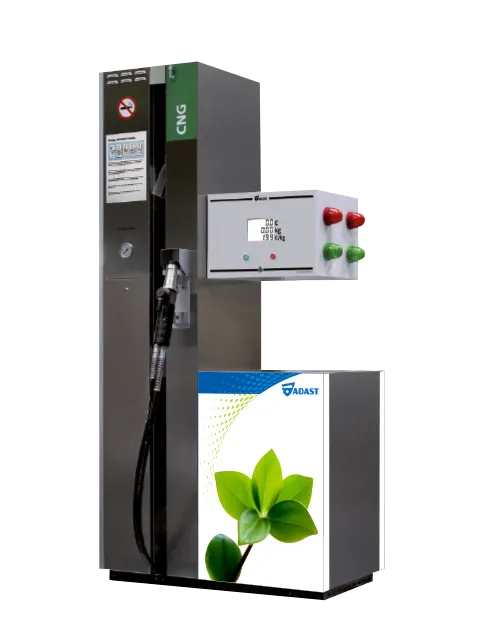

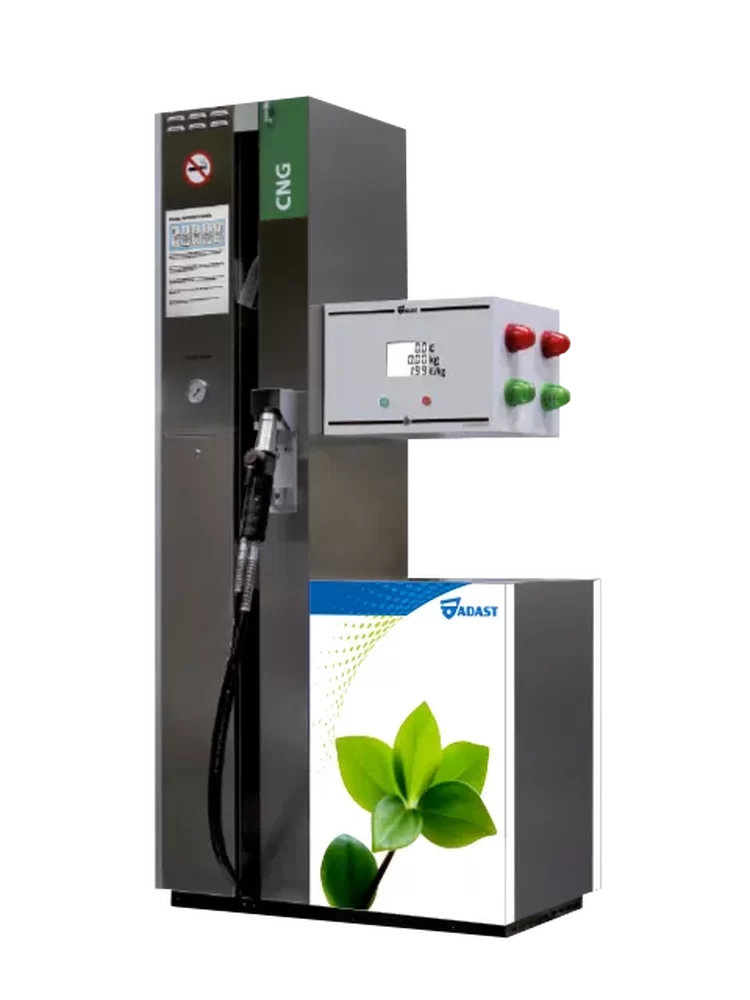

Adast Systems, a.s. is ready to deliver a complete solution within CNG technology. Both the V-line Major CNG dispensers with electronic control unit, which are used for filling vehicles with compressed natural gas. The design can be single or double sided. As well as compact CNG compressor stations with an output of 150 - 100 m3/h of natural gas.

Specification

Number of products
Number of products: 1
Number of hoses: 1-2
Minimum flow rate (kg/min): NGV 1: 0,3 NGV 2: 0,77
Maximum flow rate (kg/min): NGV 1: 30 NGV 2: 70
Operating pressure (MPa): 7-30
Dispensing accuracy: ± 1%
Electrical connection: 1/N/PE AC 230V ± 15%, 50 Hz
Temperature range: -40 až +55°C
Dimensions (L x H x W): 1100 x 2200 x 540
