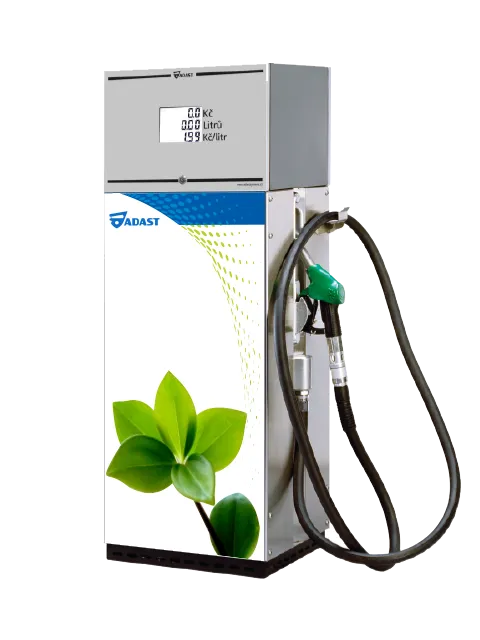

Minor
Fuel dispensers
The V-line Minor meets current and future demands for installation, ease of operation and maintenance, economical operation and operational reliability in standard and extreme climatic conditions. This dispenser is designed to dispense liquid fuels - gasoline, diesel, biodiesel B 10 to B 100 - diesel-FAME blends and gasoline-ethanol blends (E 10 to E 85).
Main advantages
- Integrated hydraulic unit
- Electronic control unit ADP1/L with single-chip microcontroller for controlling all functions of the dispenser
- ATC system - automatic thermal compensation
- Proportional valve for precise flow control from 2 to 80 l/min
- Piston meter with integrated intelligent transmitter
- Noble materials with high durability and low maintenance
- Ergonomic fit of the dispensing gun
Variant equipment
Safety tear-off couplings, sight glass, dispensing gun, dispensing hose, single-sided design, electronic volume and price preselection, ATC system for all media, electromechanical totalizer, flow adjustment button 40/80 l/min for diesel, vapor extraction system, signal light, electronics housing heating, vacuum gauge, electronics power switch, electronic counter ADP 1/T, communication standard IFSF - LON - FTT-10 or TCP/IP - Eternet.
Specifikace
| dispensing stand V-line | 8991.6x3 | 8997.6x3 | 8991.6x4 | 6997.6x4 |
|---|---|---|---|---|
| Maximum flow rate | ||||
| 40 l/min | YES | NO | YES | NO |
| 60 l/min | YES | NO | YES | NO |
| 70 l/min | NO | YES | NO | YES |
| 80 l/min | NO | YES | NO | YES |
| Maximum operating pressure (MPa) | 0,22 | 0,25 | 0,22 | 0,25 |
| Minimum operating pressure (MPa) | 0,12 | 0,19 | 0.12 | 0,19 |
Number of products: 1
dimensions (L x W x H): 510 x 410 x 1400 mm
Reach of the dispensing hose: 4 to 6 m
Dispensing accuracy: ± 0,2 %
