Major R

Fuel dispensers

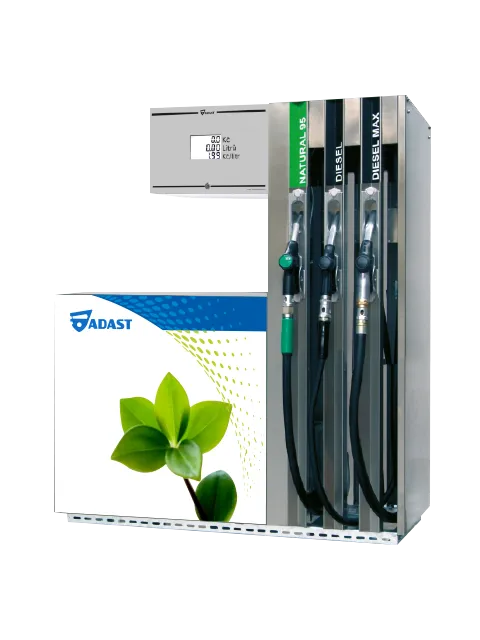

Adast Major meets the high demands for ease of installation, simple operation and maintenance, economical operation and operational reliability in standard and extreme climatic conditions. The dispensers are designed for dispensing liquid fuels - gasoline, diesel fuel, biodiesel B 10 to B 100 - blends of diesel fuel with FAME (Fatty Acid Methyl Ester), blends of gasoline with ethanol (E 10 to E 85). Dispensing stand with automatic hose retraction. Suction and pressure design.

Main advantages

  • Contemporary design, compact construction
  • Integrated hydraulic unit
  • ADP/T electronic control unit with single-chip microcontroller to control all functions of the dispenser
  • ATC (Automatic Temperature Compensation) system - certified to OIML R 117-1, WELMEC 10.4
  • Proportional valve for precise flow control from 2 to 120 l/min
  • Piston meter with integrated intelligent transmitter
  • Electronic control and monitoring of the extraction system
  • High-quality materials with high durability and low maintenance
  • Ergonomic fit of the dispensing gun
  • User-friendly preset keypad design
  • PCI PAD and EMV compliant payment terminal for local and bank card acceptance

Variant equipment

Safety bursting couplings, sight glass, dispensing gun, dispensing hose, single-sided design, electronic volume and price preselection, ATC system for all media, electromechanical totalizer, vapour extraction system, signal light, flow adjustment button for 40/80 l/min or 80/110 - 170 l/min for diesel, heating of the electronics cabinet with thermostat, PCI PAD and EMV compatible payment terminal, loudspeaker, vacuum gauge, drip tray, monitoring of the opening of the covers, design for satellite connection - diesel, power switch for electronics, communication standard IFSF - LON - FTT-10 or TCP/IP - Ethernet.


Dispensing stand V-line Major R 4601 4602 4603 4604 4605
Lenght (mm) 840 980 1400 1820 2240
Number of products 1 2 3 4 5

Reach of the dispensing hose: 4,5 m

Width: 540 mm

Height: 1650 mm

Pumping power: 40, 60, 70, 80, 110, 120, 130, 150, 170 l/min

Temperature range: -20 až +50 °C, design for extreme temperatures -40 až +60 °C

Electrical connection: 3 x 230/400 V AC ±15 %, 50 Hz

Hydraulic connection  flows: 40 – 170 l/min depends on the design of the dispenser, pipe parameters, pipe length and suction height

*46xx - suction pumping system

  47xx - pressure pumping system
