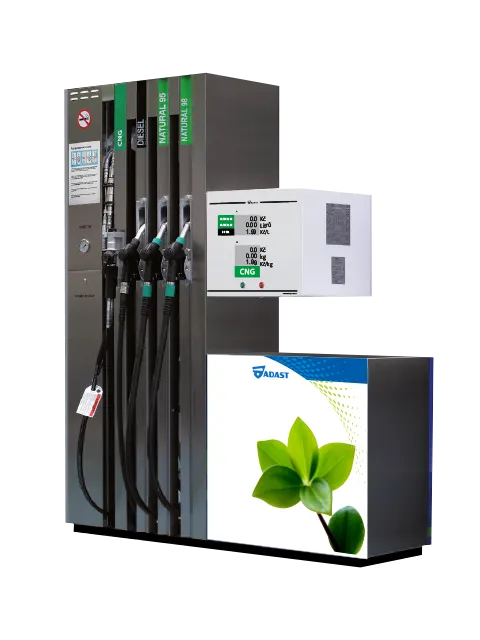

V-line Major CNG Hybrid
HYBRID systems
Specifications
| V-line Major CNG Hybrid | |
|---|---|
| Number of products: | 2-6 |
| Number of hoses: | 2-12 |
| Pump capacity (l/min): | 40 to 170 |
| Delivery accuracy: | ± 0.5% |
| Minimum flow of CNG (kg/min): | NGV 1: 0.3 NGV 2: 0.77 |
| Maximum CNG flow rate (kg/min): | NGV 1: 30 NGV 2: 70 |
| CNG dispensing accuracy: | ± 1% |
| CNG operating pressure (MPa): | 7-30 |
| Electrical connection: | 3 x 230/400V AC ± 15%, 50 Hz |
| Temperature range: | -40 to +55°C |
| Dimensions (L x H x W): | 1240 to 2640 x 2200 x 540 |
