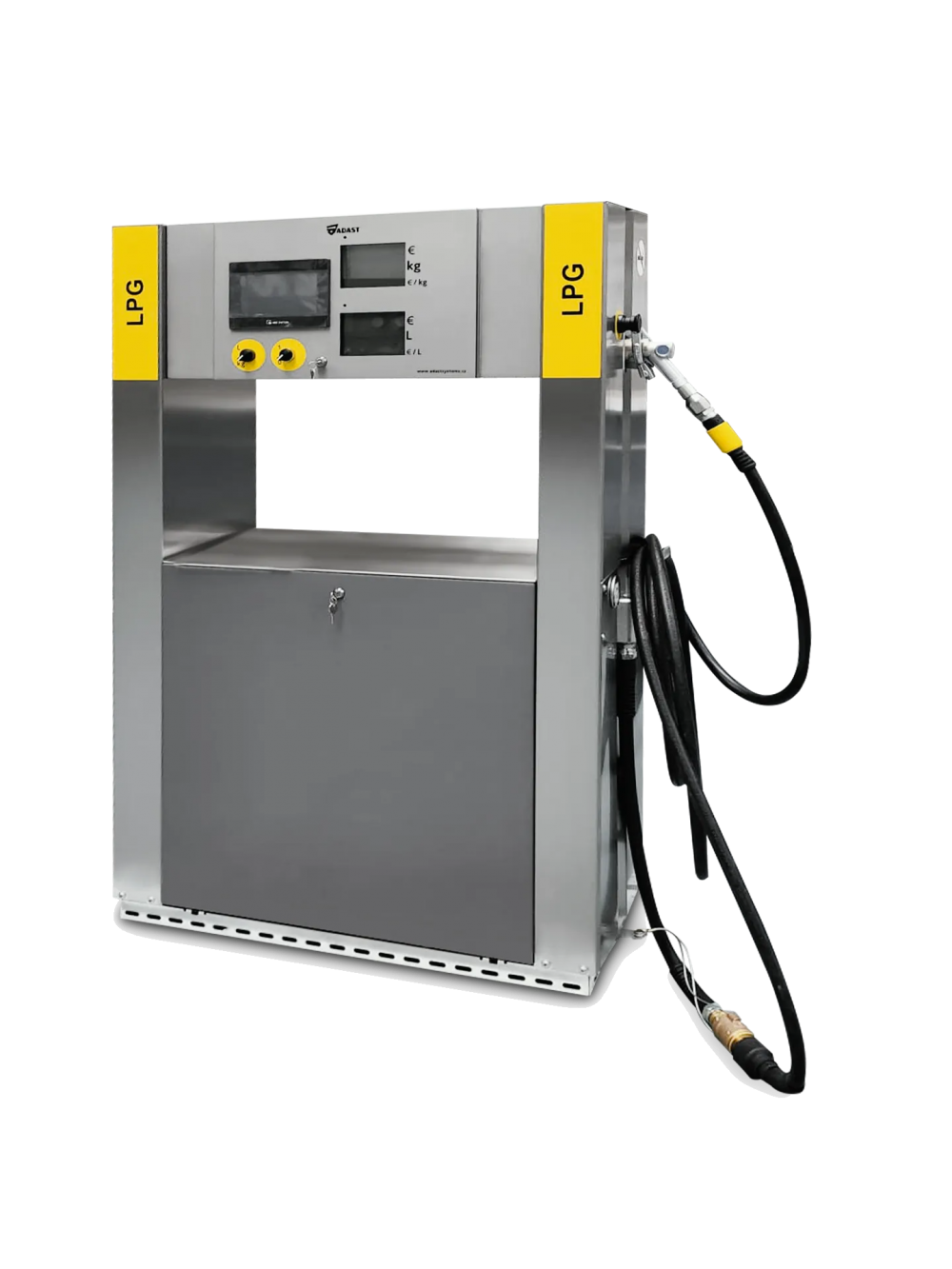

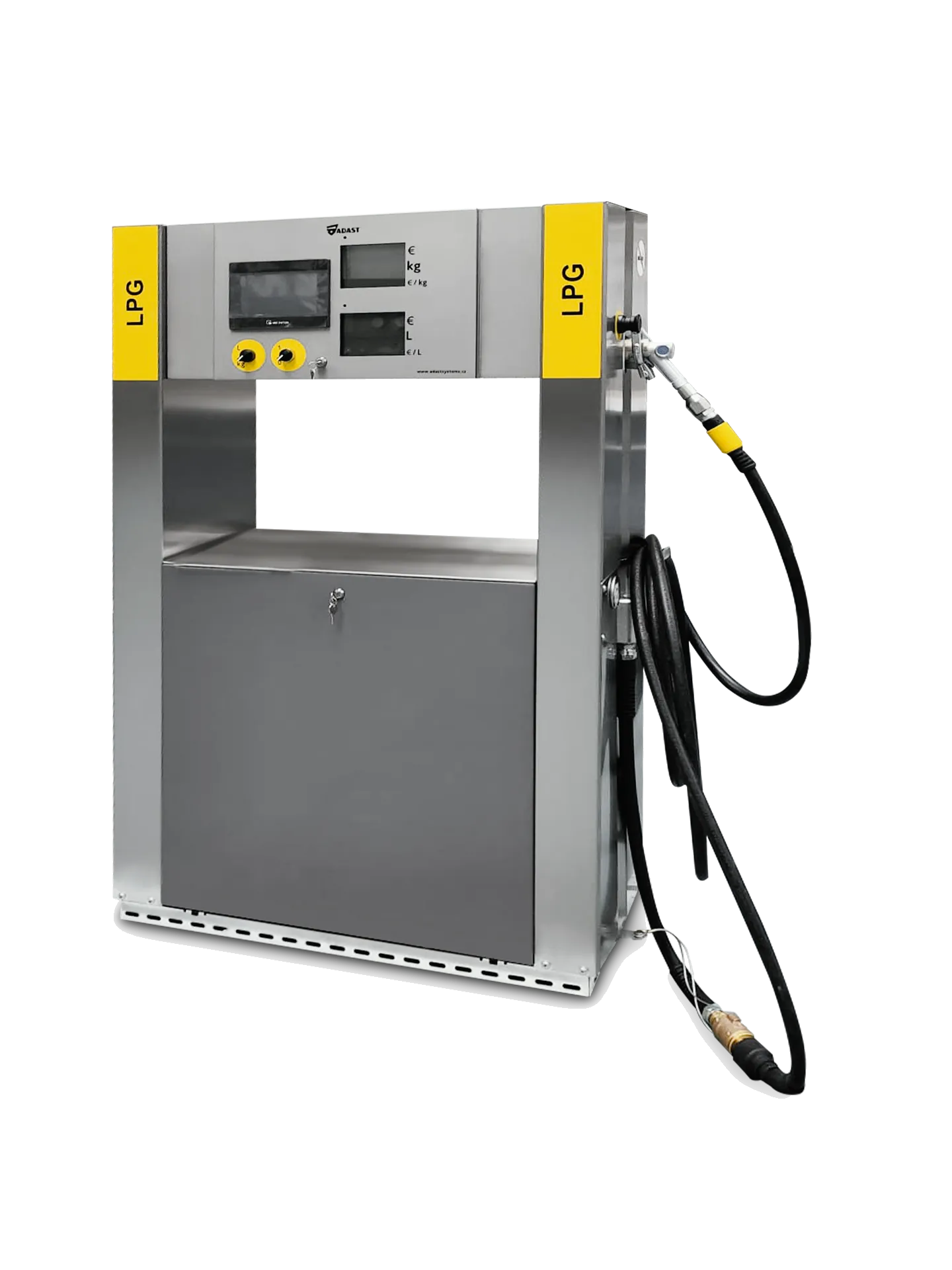

V-LINE 8993 - LPG MASS
LPG Systems
With its concept and design, ADAST LPG mass meets high demands for safety, simple operation and maintenance, economic operation and operational reliability in both standard and extreme climatic conditions.
Main advantages
- A new concept ensuring high security.
- Modern design.
- Special module for dispensing LPG pressure cylinders and dispensing to passenger cars.
- Electronic mass flow meter.
- New electronic control unit.
- Noble materials with a long service life.
Technical sheet
Configuration of LPG mass
| Dispensing in personal vending machines | liters |
|---|---|
| Dispensing in pressurized bottles | kg |
| Maximum operating pressure (MPa) | 2,0 |
| Minimum operating pressure | 0,3 |
| Temperature range: standard (°C) | -20 to +40 |
| Temperature range: extreme (°C) | -40 to +55 |
| Dispensing accuracy (%) | 1 |
| Connection | G ½“ |
| Electrical connection | 1/N/PE AC 230 V ±10%, 50 Hz |
Modification of V-line WW MINOR
| A special compact solution | 8991.623/P – 1 product, 1 hose, 1 dispensing gun 5l/min 8997.623/P – 1 product, 1 hose, 1 dispensing gun 10 or 20l/min |
| Small built-up area | with minimal dimensions |
| The entire hydraulic system | for installation - suitable for adding to existing filling stations to installed PMH stands |
| Locking | dispenser is fully resistant to the effects of water in the washers dispensing gun and doors |
| Pumping power | 5l/min – pro 20l/min – pro |
| Fluid operating temperature | -40 to +55°C -20 to +55°C |
| Ambient temperature | -40 to +55°C (special) |
| Electrical connection | 230 V AC ±15 %, 50 Hz |
| Hydraulic connection | The pumping power depends on the parameters of the pump and the supply pipe. Recommended minimum diameter of the supply pipe DN10. Connection piece DN10 with internal thread G1/2" |
| Variable equipment | Electromechanical totalizer Electronic volume and price preselection Signal light Stop button Payment terminal PCI PAD and EMV compatible Electronics power switch IFSF – LON communication standard – FTT-10 or TCP/IP - Ethernet |
MINOR WW
| Dispenser V-line | 8991.623/P/5 | 8997.623/P/20 |
|---|---|---|
| Number of products | 1 | 1 |
| Number of dispensing guns 5 l/min | 1 | 0 |
| Number of dispensing guns 10 or 20 l/min | 0 | 1 |
| Length (mm) | 510 | 510 |
| Width (mm) | 410 | 410 |
| Height (mm) | 1500 | 1500 |
| Dispensing gun range (m) | 4 to 9 | 4 to 9 |
Modification of V-line WW MINOR
| The composition of the water in the washers | Summer mixture - Distilled water, cleaning agent, dye Winter mixture - Denatured alcohol, distilled water, cleaning agent, dye |
